Carbide Boring tools
Specialize in producing carbide boring tools in a wide range of sizes and shapes, with multiple design options available.
Manufactured in compliance with ISO 9001 standards.
Solid Carbide Boring Tools Manufacturer in Thailand
ZLY has over 10 years of experience in the design and manufacturing of non-standard solid carbide boring tools and maintains strict quality control (QC). All ZLY solid carbide boring tools comply with the ISO 9001:2015 quality management system.
Our micro boring tools are made of carbide and are widely used due to their high hardness, long tool life, and precise dimensional control.
Machining range:
Diameter: 0.3 mm to 35 mm
Length: 20 mm to 330 mm
MKR
Radius Groove Boring Tool
Radius grooving boring tools are used to machine smooth curved grooves inside bores.
MGR
Internal Grooving Boring Tool
Internal grooving boring tools are used to machine smooth grooves inside holes.
MFR
Face Grooving Boring Tool
Face grooving boring tools are used to cut grooves on the bore bottom and end faces.
MTR
Internal Turning Boring Tool
Internal turning boring tools are used for machining internal diameters.
MQR
Profile Turning Boring Tool
Profile boring tools are used for contour and profile turning.
MUR
Profile Turning Boring Tool
Profile boring tools are used for contour and profile turning.
MPR
Profile Turning Boring Tool
Profile boring tools are used for contour and profile turning.
MIR
Thread Boring Tool
Thread boring tools are used for turning internal threads.

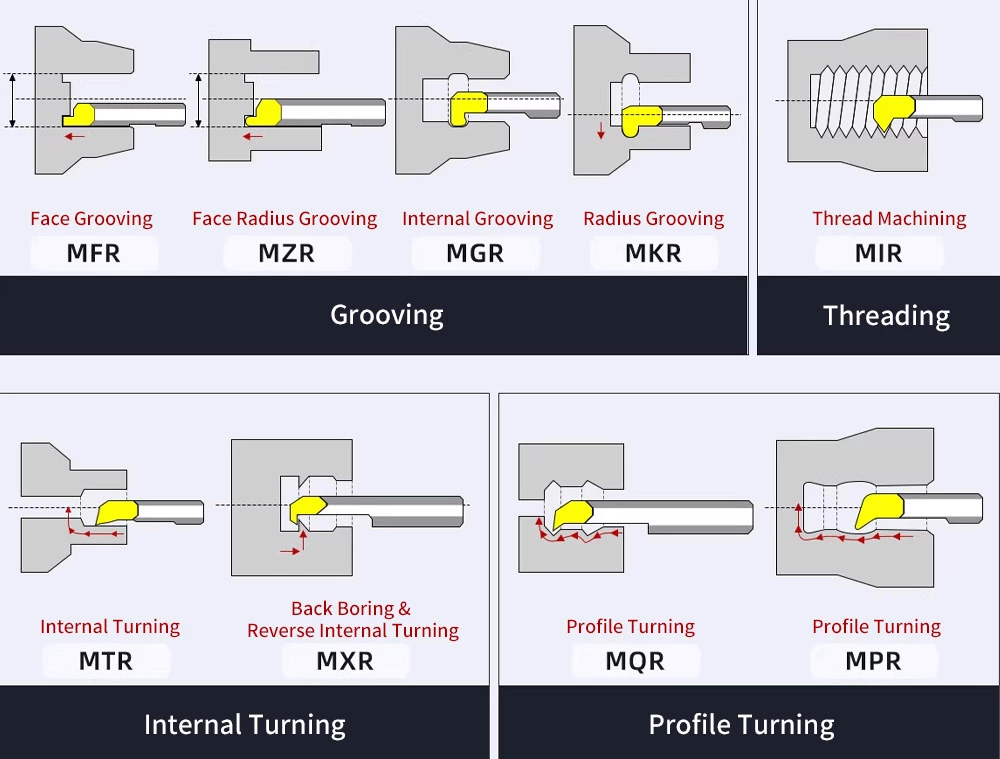

Detail Introduction to Uses of Solid Carbide Boring Tools
We have classified these boring tools in detail according to different machining methods and created illustrative diagrams to help you better choose the appropriate boring tool.
|
M |
Micro boring tool |
R |
Right hands |
|
T |
Turning |
D |
Thread finishing, grooving, chamfering |
|
I |
Thread machining |
Q |
Profile and boring |
|
C |
Chamfering and turning holes |
G |
Grooving |
|
F |
Axial grooving |
Z |
Axial radius grooving |
|
U |
Profile turning |
K |
Radius grooving |
|
M |
Multi-functional micro tool |
X |
Back turning / internal turning |
|
P |
Profile and boring |
V |
Axial deep grooving |
Customization Service From ZLY
At ZLY, we provide multiple customization options for carbide micro boring bar. Tools can be designed according to the machining material—such as aluminum, copper, cast iron, alloy steel, stainless steel, titanium alloys, and engineering plastics. We also customize tools based on your required dimensions or directly from your drawings, designing the cutter to match your workpiece precisely.
Coating services are available as well, and we can recommend suitable coatings or apply those you specify. Every step of our manufacturing process follows strict quality control to ensure the highest standards.
ZLY Carbide Boring Tools Customization Guide
When you need to customize boring tools, you should pay attention to and provide the following information:
Workpiece dimensions or tool dimensions; drawings are preferred if available.
The material you are machining. Different materials require completely different design approaches, so please provide the precise material name.
Machine type: for different equipment, spindle strength, rigidity, and your cutting speed need to be considered.
Please contact ZLY technical support for more information on tool customization.
Top Features of High-Quality ZLY Carbide Drill Bits
ZLY solid carbide micro boring tools help improve your boring efficiency and deliver excellent machining results. Our boring tools can be used on boring machines, lathes, and CNC machining centers, are easy to install, and are suitable for machining all materials.
If you need larger sizes, ZLY can design custom large-diameter boring tools or recommend indexable boring tool holders, saving costs while ensuring ease of use.
Our carbide boring tools are suitable for various internal features, such as holes, grooves, and threads. They are made of carbide with hardness above HRA 92 and are available in different styles and sizes, ensuring you can find the most suitable carbide boring tool for your application at ZLY.
Additional Services
Beyond supplying high-quality cutting tools, we also offer the following services:
- Competitive pricing
- Free tool design based on your workpiece drawings
- Free dimensional inspection based on your tool samples
- Laser marking according to your requirements
- Free local delivery within Thailand
