ZLY Solid Carbide Chamfer End Mill
- Custom Carbide Chamfer Cutter Solution
- ISO 9001 Certification Factory
- Low MOQ, Only 3 PCS
- Fast Keyseat Cutter Sample Production
ZLY: Your Best Carbide Chamfer End Mill Bit Manufacturer
ZLY high-quality carbide chamfer mills are used for efficient machining of various bevels and chamfers.
The chamfering process is critical to high-precision machining and assembly. It removes sharp edges, improves safety, prevents injuries, enhances ease of assembly, disperses stress, and increases part durability. ZLY chamfering tools achieve all of these perfectly.
Our professional expertise allows us to design customized chamfering tools specifically for your application. You can easily obtain the appearance, dimensions, and functions you require.
ZLY Can Custom Chamfering End Mill Size
Our strong manufacturing capability can meet all machining applications that require solid carbide cutting tools. ZLY CNC chamfer cutters are best for machining metals such as aluminum, copper, steel, stainless steel, titanium alloys, and hard metals. Below is the size range of end mills we can produce.
|
Cutting Diameter |
0.5mm – 45mm |
|
Cutting Length |
0.2mm – 200mm |
|
Shank Diameter |
1mm – 32mm |
|
Overall Length |
20mm – 330mm |
|
Number of Flute |
1 Flute – 8 Flute |
|
Chamfer Angle |
30°、45°、60°、90°、120° |
|
Coating Services |
TiN, TiCN, TiAIN, ALTiN, DLC, etc. |
Send Your Inquiry on ZLY Chamfer End Mills
Additional Services
Beyond supplying high-quality Chamfer end mills, we also offer the following services:
- Competitive pricing
- Free tool design based on your workpiece drawings
- Free dimensional inspection based on your tool samples
- Laser marking according to your requirements
- Free local delivery within Thailand
Recent Walk in Chamfer Cutter Order

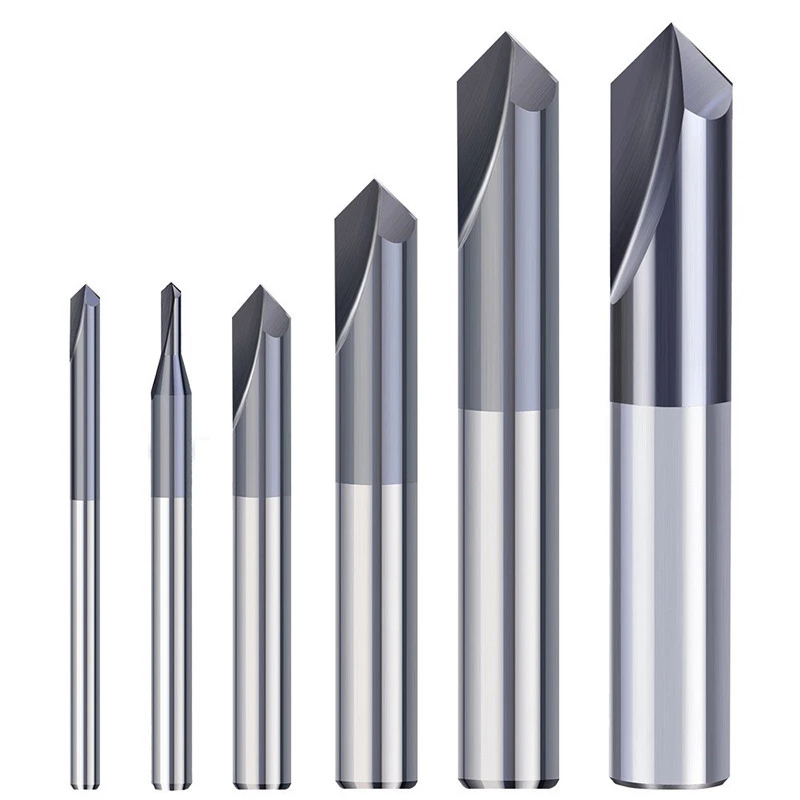

ZLY Solid Carbide Chamfer Cutter
ZLY manufactures a wide range of high-quality solid carbide chamfer mills. You can request single-ended or double-ended designs, with 2 flutes or multiple flutes in different configurations, all delivering excellent cutting performance.
Our high-quality designs ensure efficiency and reliability. When customizing solid carbide chamfer mills, be sure to consider ZLY. We are a recognized leading manufacturer of non-standard solid carbide cutting tools in the industry. If you are looking for a partner, ZLY is your best choice. We can meet all your cutting tool needs and provide one-stop solutions. For 19 years, we have remained committed to delivering the highest-quality products and services.
Contact us now!
Custom Chamfer End Mill: The Helpful Guide for Importers
The use of carbide end mills has become very common across a wide range of applications.
Frankly speaking, there are many different cutting tool designs on the market.
However, one of the most fascinating designs I want to discuss here is the carbide chamfer mill.
I will tell you how it looks like, functions, quality standards, and specifications.
So, if you need to customize a suitable chamfer mill for your application, do not hesitate any longer.
What is a Chamfer End Mill?
A chamfer mill is a cutting tool specifically used for machining chamfers on workpieces, and it is mainly used on CNC machines and milling machines.
Since chamfering operations are very common, chamfer mills are widely used across various industrial applications.
Chamfer mills come in different designs, shapes, and tip angles.
There is no doubt that this is crucial, as it allows you to choose the product that best suits your specific needs.
Why is a Chamfer Mill Needed?
This brings us to the chamfering process.
Chamfering is an important machining method that improves safety, facilitates assembly, and enhances the durability of a workpiece. By cutting a sharp right angle into an angled bevel—usually 45 degrees—it eliminates sharp edges. It offers the following benefits:
High-quality chamfer mills produced by ZLY can create smooth and consistent beveled edges.
What materials can a chamfer mill machine?
Chamfer mills are suitable for machining a wide range of engineering materials, including steel (P), stainless steel (M), and cast iron (K).
How do I determine the chamfer angle and size I need?
Generally speaking, the most commonly used chamfer angle is 45°, indicated by “C”. For example, “C0.5” represents a 45° chamfer with a width of 0.5 mm. Other angles will be specified separately.
Why use a chamfer milling cutter for deburring?
Many years ago, burrs were usually removed manually. However, with the widespread use of machining today, accuracy and efficiency are much higher. Especially for large-volume production or parts with high precision requirements, this can significantly reduce labor costs.
