Flat Bottom Drills: Structure, Applications, and Precision Machining
The flat bottom drill features a 180-degree drill point, making it ideal for handling challenging drilling situations. It can produce flat-bottomed holes without secondary processing and achieves perfect results in thin plate drilling, cross-hole drilling, irregular surface drilling, inclined surface drilling, and half-hole drilling.
Why Choose a Flat Bottom Drill?
Flat Bottom Drill vs. Milling Cutter
You might wonder: Both flat bottom drills and milling cutters can produce flat-bottomed holes and half-holes, so why must I use a flat bottom drill instead of an end mill? After all, they look similar and can achieve the same shape, right?
The answer is no. End mills are designed for radial cutting, not axial cutting. Although there is a center-cutting plunging process, the cutting speed is far slower than that of a drill. Additionally, the cutting edges of an end mill are not flat but slightly concave, which leaves a raised burr at the bottom of the hole, requiring secondary processing.
Applications of Flat Bottom Drills
Flat bottom drills enable precise drilling while minimizing secondary processing. Their structural design makes them suitable for various complex drilling scenarios.
Thin Plate Drilling
When drilling thin plates especially multiple layers of thin plates a pointed drill bit can squeeze the surface, causing warping and excessive burrs. In contrast, a flat bottom drill gradually removes material from the top layer without causing compression.

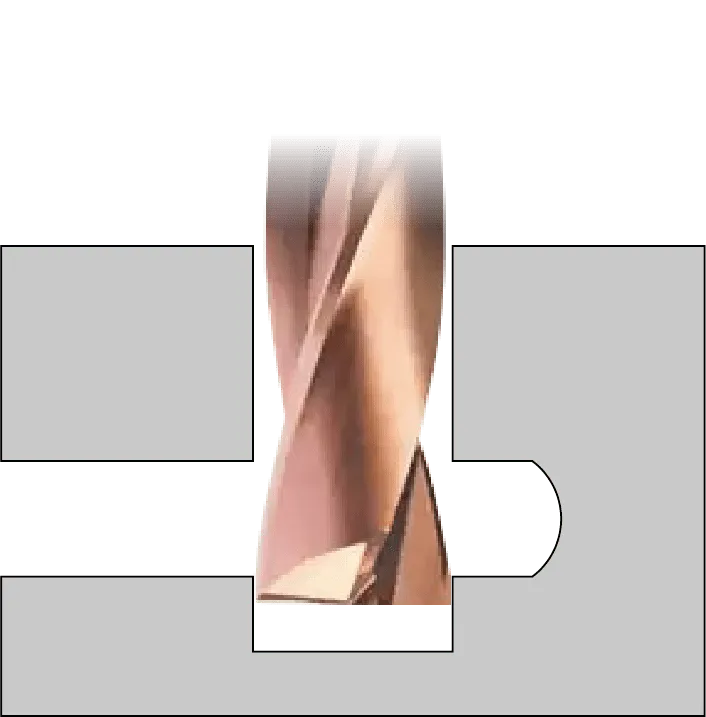

Cross Hole Drilling
When drilling a 90° cross hole in an existing hole, a flat bottom drill preserves the smooth inner wall structure of the original hole without damaging it.

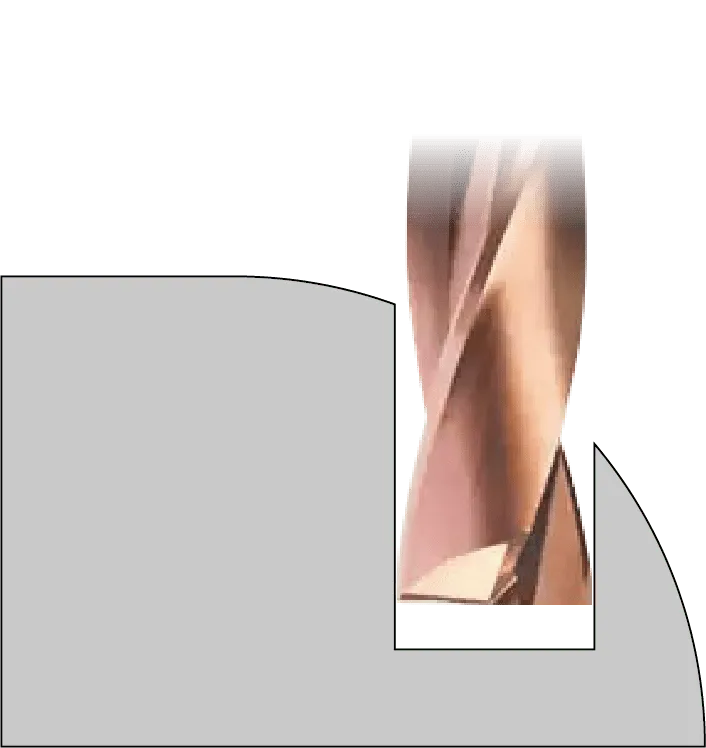

Curved Surface Drilling
A pointed drill bit struggles to grip on curved surfaces, leading to misalignment or failure to penetrate. In comparison, a flat bottom drill maintains stability on inclined surfaces, producing straighter holes.

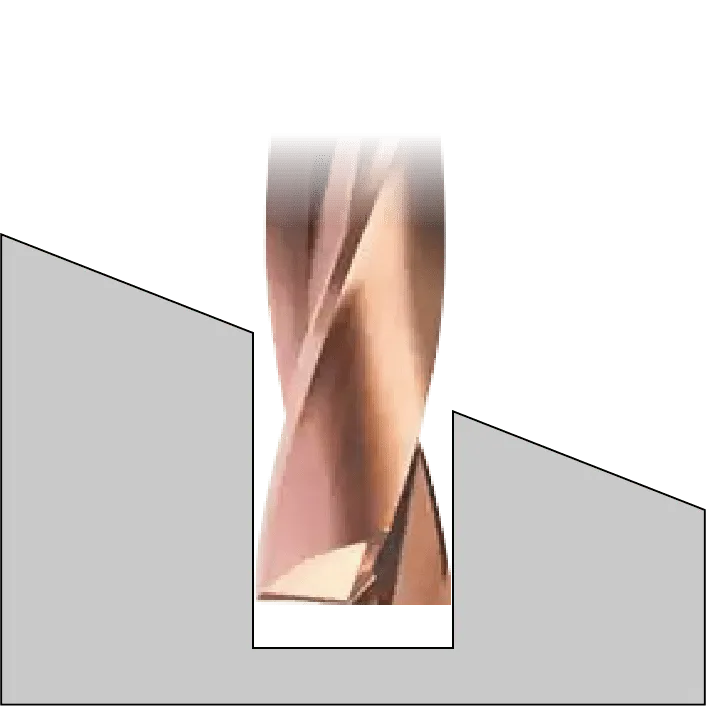

Inclined Surface Drilling
Similar to curved surface drilling, even if the part surface is flat or regular, when the inclination exceeds a certain angle, a pointed drill bit cannot grip properly, easily slipping or misaligning the hole. For the same reason, a flat bottom drill is highly suitable for drilling on sloped and irregular surfaces.

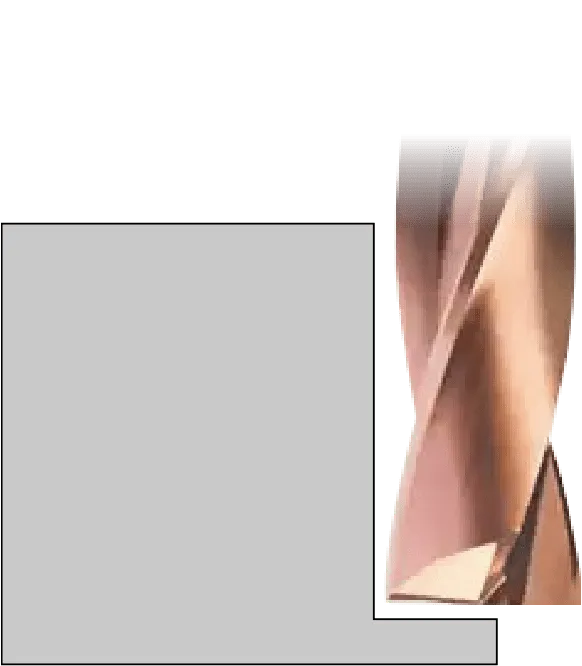

Half Hole Drilling
When drilling a half hole at the edge of a part, the lack of material on the other side prevents a pointed drill bit from maintaining a vertical force line, making it prone to tool deflection during machining. The cutting edges of a flat bottom drill fully contact the top surface of the half-hole and slowly remove material, ensuring excellent stability.
Angled Drilling
In some cases, due to workpiece assembly requirements, drilling must be performed at a slight angle from a vertical surface. This scenario can only be accomplished with a flat bottom drill.
Summary
Although flat bottom drills outperform pointed drill bits in certain special cases, for standard flat-surface hole machining, pointed drill bits remain the primary tool due to their high efficiency, cost-effectiveness, and stable performance.
Selecting the appropriate drill bit for the specific machining area ensures smoother workflow.
